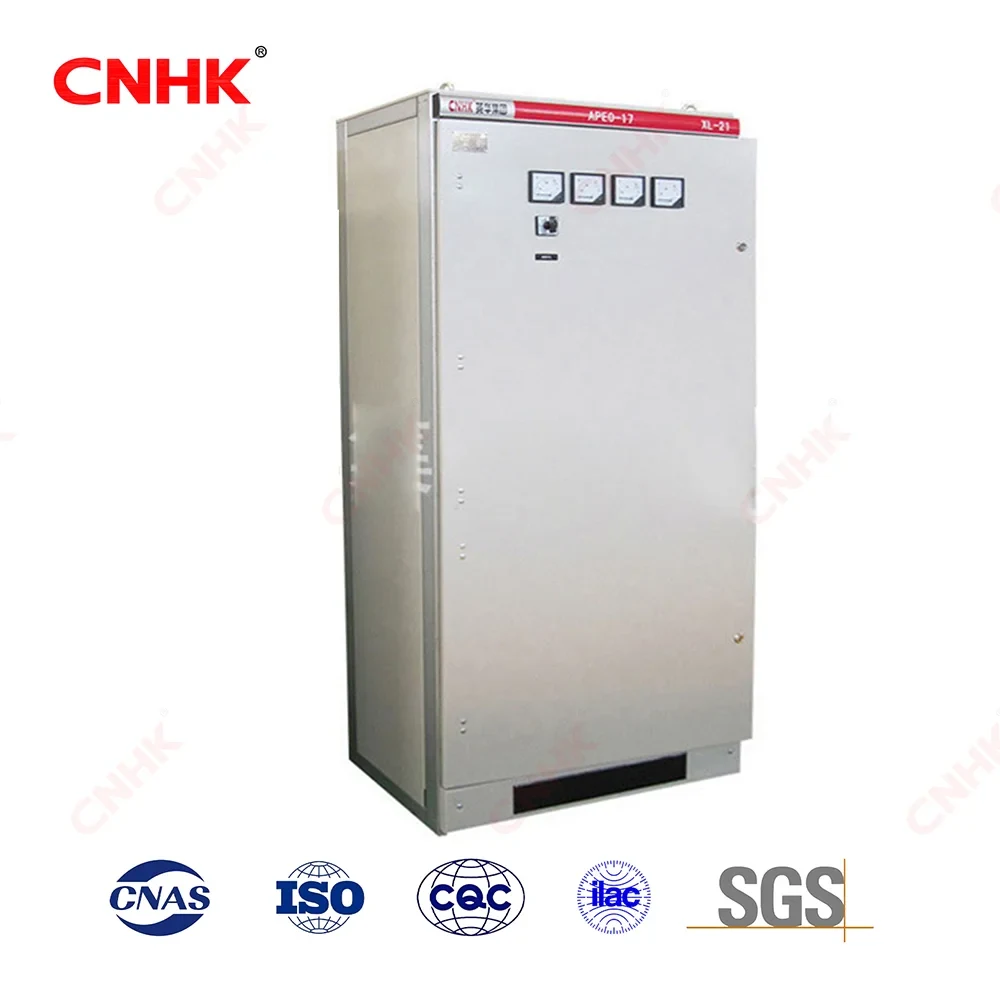

XL-21 Power Distribution Cabinet

General

Application:In the system of less than or equal to 500V AC,

3 phases & 3wires,for power distributionIn power plants and industrial & mining enterprises.XL-21 is installed aganist wall,

Indoor type, tested and repaired before the screen.

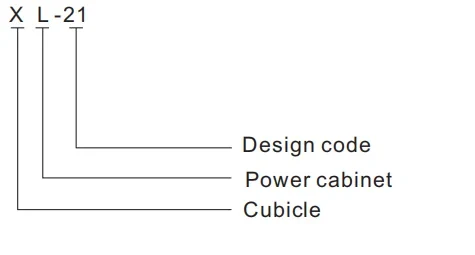

Type Designation

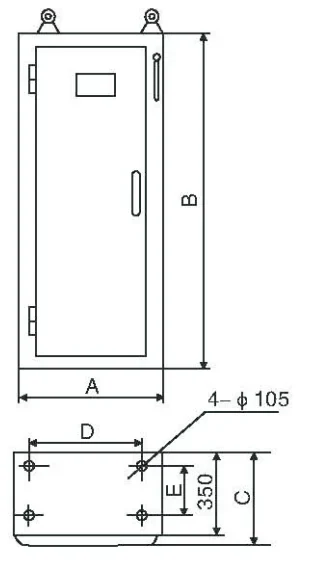

Dimension and Installation

Model	A	B	C	D	E
XL‑21‑A	600	1600	370	550	250
XL‑21‑B	700	1700	370	650	250
	600	1700	470	550	350
	800	1700	470	750	350
XL‑21‑C	700	1700	470	660	395
