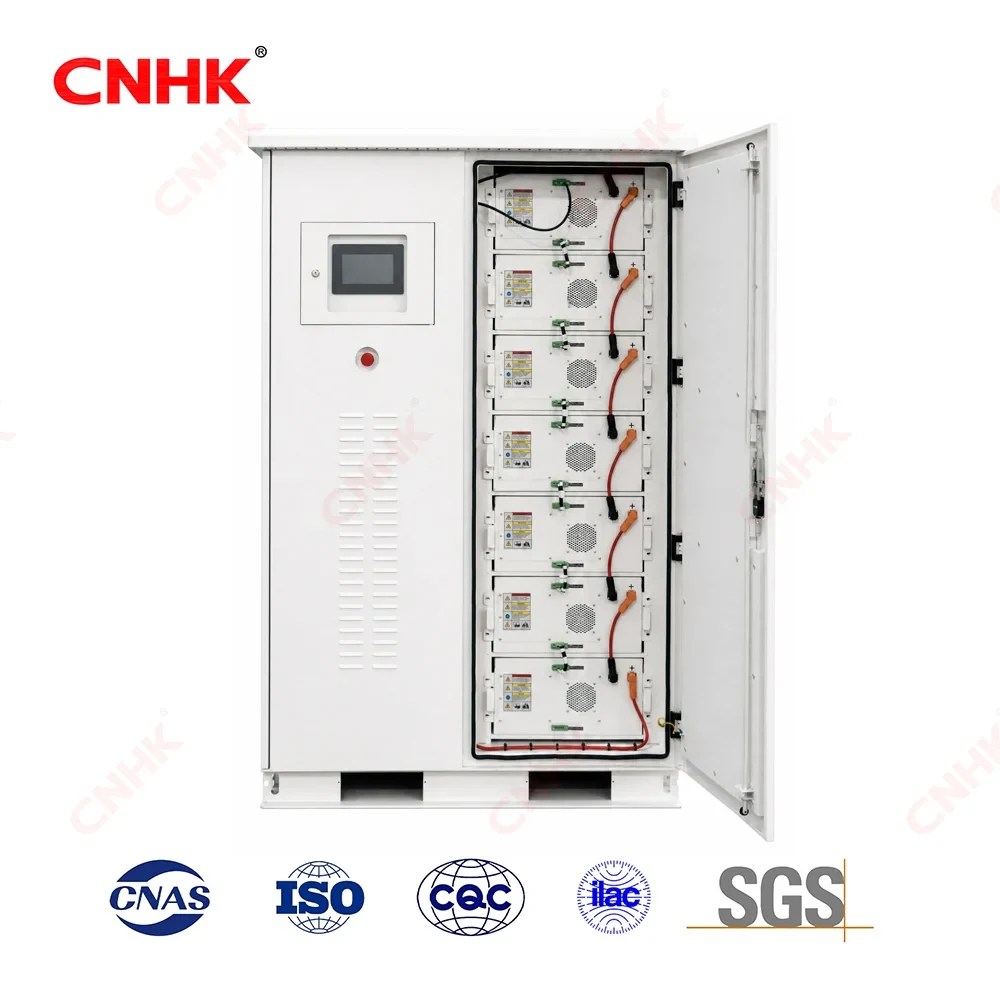

108kWh Air-Cooled DC Outdoor Cabinet
This product constitutes acomplete high-voltage battery energy storage system, integrating battery modules,a Battery Management System (BMS), athermal management system, and fire protection and monitoring units.By connecting to an external Power ConversionSystem (PCS), the stored energy is converted into AC output,making it suitable for a wide range of applications includingfactories, retail outlets, holiday accommodation,and outdoor emergency power supplies.
Send Inquiry Product Features
| Feature | Technical Detail |
| LFP Cells | 314Ah LFP prismatic aluminum-shell cells, high thermal stability, long cycle life. |
| High-Perf. BMS | Custom strategies; protects cell voltage / total voltage / temp / current / short-circuit / insulation / open-circuit. |
| Multi-level Safety | Circuit breakers + fuses + contactors for reliable power cutoff; personnel & equipment safety. |
| Active Safety System | Smoke detect + water-leak sensor + access control + S-type aerosol + E-stop interlock. |
| High Compatibility | RS485 / CAN / TCP; pre-loaded 12 mainstream PCS CAN protocols. |
| Smart Thermal Control | Industrial A/C cooling & heating, BMS Precision Intelligent Control，cell ΔT≤5℃, rise≤10℃ @0.5P. |
| Smart Interaction | Optional Bluetooth / Wi-Fi for remote wireless monitoring, device management & OTA upgrade. |
| Modular Design | High integration with independent modules; easy install / operate / maintain. |
| High Adaptability | IP55 enclosure; discharge -20~60℃; charge 0~55℃; altitude ≤3000m. |
Product Parameters
| Parameter | Value |
| Model | BESS-YX50-108 |
| Cell Type | LFP Square Aluminium Casing (314Ah) |
| System Nominal Energy | 108 kWh |
| Cell Configuration | 1P18S × 6 packs |
| System Nominal Voltage | 345.6 V |
| System Operating Voltage | 324 V ~ 388.8 V |
| Rated C-rate | 0.5P (50kW class) |
| Recommended DOD | 95% |
| Cycle Life | ≥6000 cycles @ 70% SOH (0.5P, 25℃) |
| Thermal Management | Forced air cooling (industrial A/C) |
| Cell Temp. Variation / Rise | ΔT≤5℃ / rise≤10℃ @0.5P |
| Charge Temp. Range | 0 ~ 55 ℃ |
| Discharge Temp. Range | -20 ~ 60 ℃ |
| Enclosure IP Rating | IP55 (outdoor) |
| Altitude | ≤ 3000 m |
| Cabinet Dimensions (L×W×H) | 645 × 1270 × 1880 mm |
| Product Weight | 1030 ± 5 kg |
| External Ports | RS485 / TCP / CAN |
| Wireless Comm. (Optional) | Bluetooth / Wi-Fi |
| Fire Suppression | Type S Aerosol Automatic |
| Balanced Current | 200 mA |
| Reference Standards | GB/T 36276, IEC 62619 |

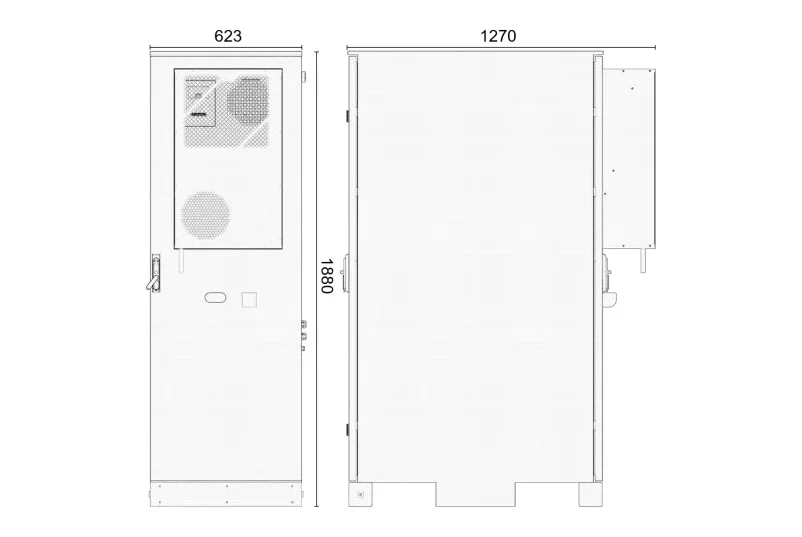

DimensionSpecifications
The dimensions of the BESS-YX50-108 system are shown in
W623×D1270×H1880mm.
